We have cutting equipment brands Jarvis, Effa, Kentmaster.

CUTTER HEAD AND LEGS OF PORK

Operation:

• The quick and easy short 3HD head of hogs, sows, boars and cattle.
• FAST - an operator can handle more than 1200 pigs/hour.
• Designed for optimum handling.

Team Technical Data:

• Transmission: Electric-Hydraulic.
• Cutting Force: 6 kN
• Cutting Cycle Time: 1.6 seconds
• Handles Control: Tires bimanual and Anti-grip, 3.5 bar.
• Opening of the blades: 241mm in the tip., in the widest part of 286mm.
• Overall length: 1092mm.
• Weight: 21.8 kg.

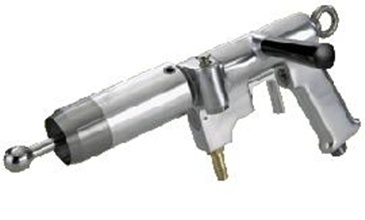

HOG BUNG DROPPER

Operation:

• Walking quickly and efficiently pig rectum.
• Fast - a single operator can be cut 1200 pigs / hour.
• Easy to use, does not require much skill.
• Llight weight and maneuverability for maximum productivity.
• Increased performance - a measure optimal blade leaves more meat on the animal, except in the intestine.
• Blades of high hardness stainless steel for long life.

Team Technical Data:

• Working pressure: 6 bar.
• Power: 0.60 HP - 440W.
• Air consumption: 700 l / min.
• Approximate weight: 2.8 kg.
• Blade Length: 195mm.

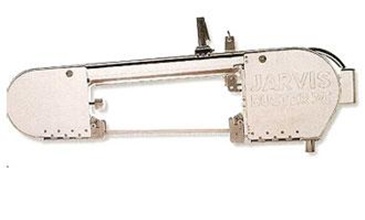

CARCASS SPLITTING

Operation:

• Used for splitting pig production (400 pigs / hour / saw).
• Internal disinfection system for primary contact areas.
• Front Wheel Alignment for a better life rebuttable leaf blade.
• Transmission System coated with oil to keep trouble free operation.
• Anti-grip controls and totally enclosed electric motor for operator safety. Availability of all voltages.
• Meets national and international health and safety (approved by USDA and EC).

Team Technical Data:

• Transmission: Electric.
• Motor power: 3 hp.
• Operating Voltage: 460 V 3 phase 60 Hz.
• Capacity: 400 c/hr.
• Levers of control: Anti-grip bimanual Power: 12 V.
• Diameter in guides: 435 mm.
• Blade Length Blade: 2845 mm.
• Overall length: 1295 mm.
• Height: 305 mm.
• Weight: 50 kg.

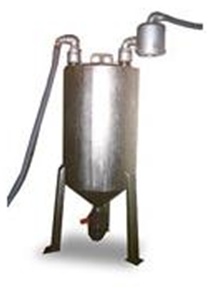

MARROW ASPIRATION KIT

Operation:

• The equipment has been developed for the removal of bone in animals, cattle, sheep, goats and pigs.
• No need for a corner.
• Total marrow aspiration through tubes of different diameters.
• Easy to use does not require skilled personnel.
• Manufactured according to EC standards.

Team Technical Data:

• Capacity: 100 L.
• Manufacturing: Stainless steel.
• Cauda displacement: 100 m3/h.
• Vacuum Limit: 20 mbar.
• Power: 3.5 hp.
• Operating Voltage: 220/380 50Hz.

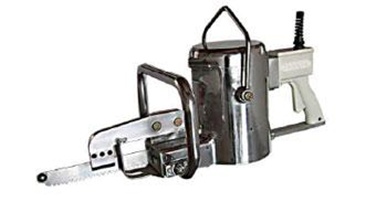

STERNUM CUT SAW

Operation:

• To cut the sternum and hip.
• High power in small size.
• Motor shielded watertight.
• Easily sterilized.
• Complies with international safety and hygiene.

Team Technical Data:

• Motor power: 1.90 hp.
• Operating Voltage:
  • 42/115/230/400/415 V 3 phase 50 Hz.
  • 220/230/380/460 V 3 phase 60 Hz.

• Cutting Speed: 191 - 228 m/min.
• Control Handle: Single Trigger Electric.
• Blade length: 241, 267, 292, 330 mm.
• Overall length: 610 mm. (no leaves), 711 mm. blade of 9.5 ".
• Weight: 24 kg.

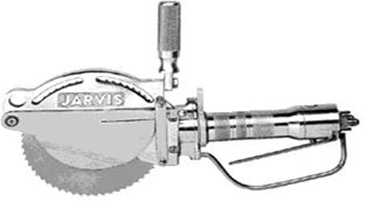

SIERRA HYDRAULICS

Operation

• Ideal for:
  • Cut ribs or hot or cold and cuts.
  • Removing or broken spine and forequarters and chest.
  • Marking of hams and shoulders of cattle.
  • Constructed entirely from steel or stainless steel.

Technical Data:

• Transmission: Hydraulic.
• Motor power: 2.5 hp 1865W.
• Blade speed to 3.5 gpm: 2725 rpm.
• Control Handle: Single Trigger-tire.
• Overall length: 419mm 16.5in
• Weight: 3.2 kg.

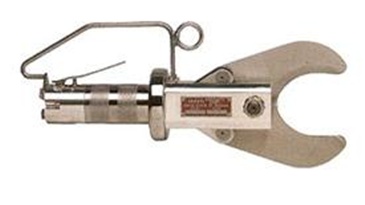

CUTTING SHEAR LEGS

Operation:

• Robust and powerful machine to cut pig feet and bristles, as well as legs of calves and sheep.
• Opening of the blades: 79 mm (3.1 inches).
• Fast cutting, only 0.7 seconds per slice. Clean cut - without bony spurs or dusted.
• Special Hanger.
• Protection of the blades can be mounted on both sides for left and right handed operators.
• The HTC-80 is virtually maintenance free for long life without problems.
• Light weight - only 4.8 Kg(10.6 lbs).
• Meets national and international safety and hygiene.

Team Technical Data:

• Transmission: Electric-hydraulic.
• Cutting force: 10.9 kN.
• Cutting Cycle Time: 0.7 seconds.
• Control Knobs: Simple Trigger hydraulic, pneumatic simple trigger.
• Overall length: 406 mm.
• Weight: 4.8 kg.

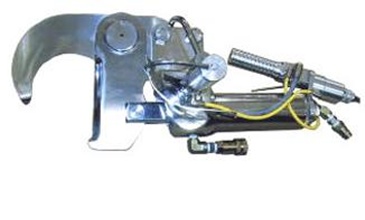

HORNS AND FEET CUTTER

Operation:

• For bovine horns inaccessible guillotine-type cutters.
• To cut the front or rear of the hock joint or bone.
• With a cutting cycle of 2.1 seconds, the 50D-1 is a tool of high production and high performance used for the most demanding applications, especially where a single operator has to cut both horns and the front hock.
• With the highest possible hygiene with renewed entirely in stainless steel construction - minimal corrosion problems.
• Robust construction, including solid sharp stainless steel blades for a long trouble-free operation.
• Anti-grip controls for operator safety.
• Complies with national and international safety and hygiene.

Team Technical Data:

• Transmission: Pneumatic-hydraulic.
• Open blade: 114mm.
• Cutting force: 51 KN.
• Handles control: Dual Tyres "anti-grip" 5-8 bar.
• Cutting Cycle Time: 2.1 sec.
• Overall length: 610mm.
• Weight: 27 kg

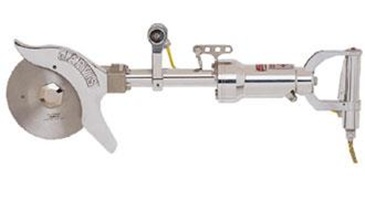

HYDRAULIC SAW HBS-3

Operation:

• Walking Acura fast across the chest pigs.
• Rápica, a single operator can handle more than 1000 pigs / hour.
• Total length of short, light weight and adjustable handles for optimum handling.
• Rugged design made of high-performance stainless steel, to cut long and smooth.
• Controls anti-grip and drive instant stop for operator safety.
• Meets national and international safety and hygiene.

Technical Data:

• Air. Electric-Hydraulic.
• Capacity: 1000/hora.
• Disc speed: 20.8 Lpm.(5.5 gpm)
• Handles control: anti-Grip Power 12V.
• Disc Diameter: pig-Cerda-229mm and 203mm.
• Depth of cut: Pork and Cerda-102mm 76mm.
• Length: 800mm.
• Weight: 13.4 kg

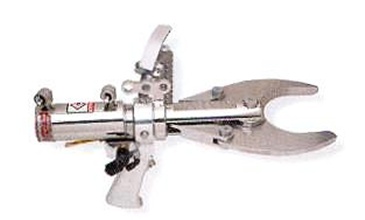

SHEEP MOWER HYDRAULIC HEADS

Compact for easy handling, robust long-term, trouble-free operation.

Super fast cutting cycle combined with high shear force is a high performance for most applications.

Available with pistol grip or straight handles for optimum operator comfort.

Anti-grip controls for operator safety.

Made of corrosion resistant materials for optimum hygiene.

TIRE COURT SHEEP STERNUM

Two-hand controls for operator safety.

Made of corrosion resistant materials for optimum hygiene.

Meets national and international safety and hygiene.

Sealing esophagus to sheep

Capping esophageal manual double lock. Specific sealing rings for the closing of the esophagus, latex manufactured in high pressure to prevent rupture.

For high yields can be considered the installation of a sealing pneumatic esophagus.

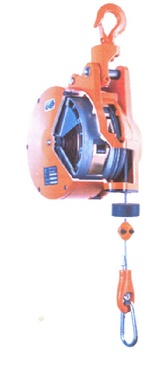

BALANCER FOR SIERRA

Technical Data:

• Cable length: 2m.
• Weight: 2.9 kg.
• Housing, and drum cover aluminum housing.
• Easy and safe replacement of springs preassembled in shielded boxes.
• Rápica and safe replacement of cables.
• Shackle, snap hook and safety chain.
• Cable corrosion.
• Limiting the maximum cable run.
• Automatic lock the drum.
