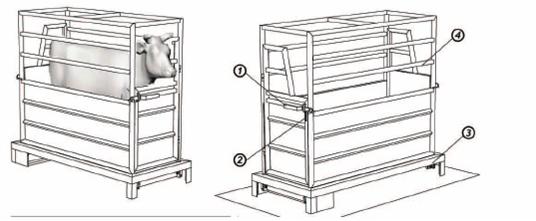

1500 KG LIVESTOCK SCALE

Description:

• Scale won despite all steel, 1500 kg capacity is a hybrid platform with barriers up to 800 mm. on the weighing surface. It has two wheels for easy entry and exit of the animal.
• Built in langular profiled steel 80 mm. settled for four points of the same angle.
• A UPN rail weighbridge of 80 mm.
• Two levers interconnected by a central flange directly attacked to the point where it is attached the load cell, so the arrival cul effort.
• Barrier constructed with 40mm tubular. On the sides and doors are covered with a sheet of 2 mm. thick, up to a height of 800 mm. the paltaforma.
• Doors with carefully designed for easy access for animals.

Technical Data:

• F112 iron construction with painted finish.
• Load cell 1 unit Mod G-34 steel.
• Cable 5 m from scale to indicator.

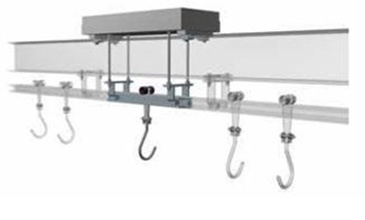

SCALE AIRCRAFT

Operation:

Weighing scales installed at the end of the line dressing prior to the washing of channels, input and output areas of cameras, pre-cutting in the area of issue ....

Features:

• Make and model: BALANCO.
• Rail Dimensions: 600mm maximum.
• Range: 300Kg.
• Step: e=100gr.
• Cells in IP-68 stainless steel.
• Exterior stainless steel. galvanized interior.
• Viewfinder Type E-1010:

• • Maximum ease of use with a minimum of buttons to press. A single function key settings and operating speeds. It also has a keypad for fast data entry.
  • Big Screen LCD or 20 mm.
  • Rechargeable battery allows the indicator to be used for portable remote power.
  • The serial port allows for connectivity to PCs, printers and other serial devices.
  • Weighing, counting, aggregation and retention of peaks. The storage of five dollars you can quickly get a tare container used frequently.

FLOOR SCALE RAMP

Operation:

Weighing scales installed at the end of the line-dressing before the washing of channels, input and output areas of cameras, pre-cutting in the area of issue ....

Features:

• Built for use only on floor, low profile ramp in stainless steel, is supported by 4 stainless steel cells play an IP68 protection.
• Approximately 55 mm platform height.
• This type of platform construction prevents pit.
• 4 load cells.
• Includes 1 pc. access ramp. (2 nd ramp optional).
• Features:
  • Capacity: 1500 kg.
  • Divisions: 500 g.
  • Made entirely of stainless steel.
  • Dimensions: 1250x1250 mm. (Ramp: 1250x500 mm.

Viewer type E-1110:

• Maximum ease of use with a minimum of buttons to press. A single function key settings and operating speeds. It also has a keypad for fast data entry.
• Large LCD display of 25 mm.
• Built-in rechargeable battery allows the indicator to be used for portable remote power.
• The serial port allows for connectivity to PCs, printers and other serial devices.
• Wide range of tasks including measurement of weight per piece, check weighing, counting, aggregation and retention of peaks. The storage of five dollars you can quickly get a tare container used frequently.
• Degree of protection IP-65.
• Stainless steel housing.
• Numeric Keypad.
• Function special weight integration processes dynamic weighing heavy.
• RS-232 and RS-485.
• Ethernet connection.
• Wall mountable / desktop.

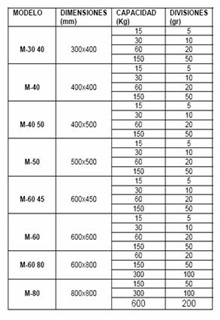

SET SCALE PACKAGING - UNICELLULAR PLATFORM SERIES M

Electronic platform mod. M-60 steel inox.
Stainless steel cell.
Capacity 60 kg divisions 20 gr.
Dimensions 600 x 600 mm platform.

Viewer mod. model viewer E-1010

Label Printer “CAB” mod. MACH 4
Thermotransfer. 8 MB internal RAM. Compac Flash Card. 120 mm label width., 105 mm printing width. Indefinite length. Serial ports ETHERNET TCP/P.

Exclusions:

• The civil works and anchor plates required for the installation of the scale.
• The download of the scale.
• Support of peonage to our technical and mechanical elements required to move the materilas during assembly.
• The power line must be independent and very stable.
• The casing pipe and cable from the platform to display.
• Tensior 220 V, 50 Hz grounded independently.

Features:

• These platforms consist of mounting a load cell between 2 rigid tubular structures.
• The version in stainless steel AISI 304 provides protection against corrosion and harsh environments.
• 4 adjustable legs that allow for leveling and installation on the floor or bench.
• Limiter on static load cell.
• 4 limit corners of platforms that allow support for loads exceeding maximum capacities.
• Load cell type MSP, with IP 66 and CE approval certificate.
• Cable connection viewer 3 m.

HYBRID PLATFORM MOD. H-101

Features:

• Built for use in pit or on the ground, the platform consists of a mechanical transmission mechanism of load levers precision load cell with a tip.
• High precision mechanical components and high heat resistance are treated.
• The structure of the components can withstand much higher loads at the rate of the platform.
• Standard Steel fully painted with epoxy primer and synthetic enamel or painted with load plate in AISI 304 stainless steel matt finish.
• This platform includes 1 cell with IP68 protection, with CE approval certificate.
• Platform height 160 mm (180 mm x 2000 version of 1500 mm).
