PNEUMATIC PUMP
Description:
Machine designed for the closed pipeline transport, slaughter by-products, tripe, crushed bones, intestinal contents, etc.
Technical Data:
- Stainless Steel Construction AISI - 304
- Total Volume: Liters 150-250-300.
- Loading: approximately 150 to 180 kg.
- Boca load: Knife gate valve 10 "- 250 mm. diameter and driven by double-acting pneumatic cylinder. Hatchet AISI - 304.
- Check out free lower 6 "- 150 mm. Ø.
- Air insufflation nozzle toward the discharge outlet. Main entrance of air 1 "½.
- Working pressure between: 5 to 7 Bar
- Loading and unloading Flanges DIN - 2576 PN-10.
- Ferrules and bottom thickness: 6 mm.
- Lift and ground by four anchor studs M - 20.

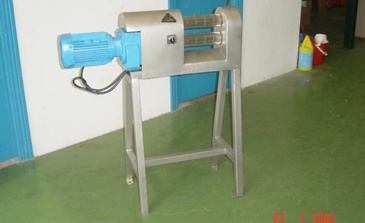

DESPEZUÑADORA MACHINE
Machine designed to eliminate hoof of the legs of cattle.
HOPPERS AND SILOS

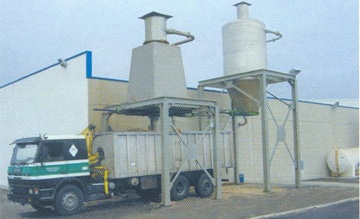

SILOS
Description:
- Designed for hair-manure storage or storage of guts, bones crushed.
- Loading and unloading a transport truck tire by gravity.
- Gates to discharge driven by hydraulic cylinders.
Technical Data:
- Dimensions to capacity.
- Different capacities for each product.
- Manufacture of stainless steel AISI-304.

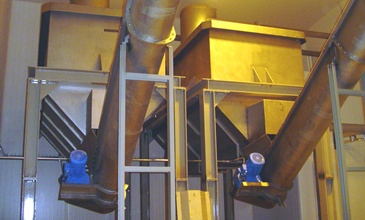

HOPPERS
Description:
- Designed for storage of products with internal Nonprofit mounted on a shaft tube perforated bar.
- Nonprofit These are driven by gear motors. The transmission is by chain and sprockets.
Technical Data:
- Dimensions to capacity.
- Different capacities for each product.
- Manufacture of stainless steel AISI-304.

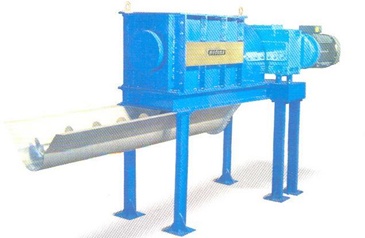

Crushing Machine of bones
Description:
- This machine is designed for crushing bones in cutting beef, lamb and pork.
Technical Data:
- Model CPZ-SD2-SD3.
- Power 22Kw. (30Cv.) and 15 Kw. (20hp).
- Motor direct coupled to the gearbox.
- Iron construction ST-52 and AISI-304 stainless steel.
