Description:

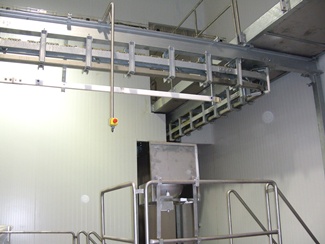

Machinery designed for air transport of animals automatically.
The conveyors can be adapted to any type of way.
The drive is made by direct transmission with planetary gear motor so we can get the speed you need.
The shafts are made of F-125 to ensure sufficient strength for use
Todos los elementos auxiliares de transmisión (coronas, casquillos, etc.) están fabricados en F-114.
The chain tension is made by elastic cylinder. The operation of the cylinder is made by compressed air at 4 bar pressure. Chains use the highest quality and strength.
Technical Data:
- Construction: Galvanized steel.
- Transmission: direct planetary gearmotor shaft, power 1.5 kW.
- Tension wheel drive wheel + wheels + 8 forwarding with hardened teeth.
- Air pressure: 4 bars.
- Cota rolling estimate: according to design.
- Length of the conveyor: By design.
- Different types of string:
- X-458. 4”
- Poliplana
- Rtl-80
- The speed depends on the gearbox which is equipped and variations of the control box.
Models:
Scalding Conveyor
Designed to take the animal either by dragging or suspended during blanching. Usually equipped with a hook to engage and disengage automatically carnal animal.
Vertical or Pulling system
TRANSPORTER FOR ANIMAL PROCESS
It's simple and simply push the slaughterhouse animal during the slaughtering process.
CHILLERS
QUICK CHILLER
One form is the conveyor of zigzag-shaped chambers that allows the passage and retention of the animal in a quenching chamber for a period of time .
OFFAL CONVEYORS
Synchronous movement with white and red offal conveyor and the ergonomic viscera tapestry to maintain traceability and to enable proper veterinary inspection.
CONVEYORS CLASSIFICATION WALKING BEAM
Channels for classifying and retrieving items or lots from the cameras automatically from the control software.
