Mecanova

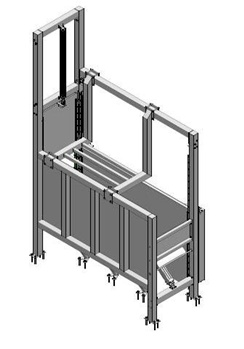

BOX OF MIXED DOUBLE DOOR AIR ABATEMENT


Description

 Machine designed to facilitate the work of stunning of cattle beef. All gates are operated by the operator using a pneumatic device easy to use.

Technical Features

• Chassis: Galvanized steel construction
• Working pressure: 6 bar
• Maximum production: 80 cattle per hour

This is especial for low production. Maximun 30 cow/hour.

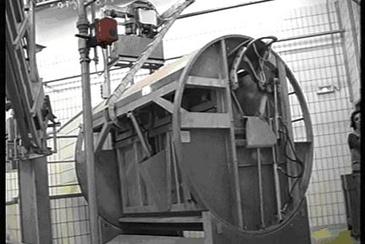

ROTARY JOINT FOR BOX STUNNING RITUAL / RITUAL SACRIFICE (HALAL OR CASH) FOR MORE CATTLE AND CALVES

Description

Box ritual / traditional mixed (calf / veal) rotary directional model F-7 B / V.

Technical Data:

• Hot galvanized machine
• Production:
  • or In ritual fashion: 60/80 V/H
  • or In the traditional way: 80/100 V/h.
• Transmission: Hydraulic
• Tailgate roof contingency and adaptable for all kinds of animals.
• Drum made of 2 structural rings embedded platform and work with adjustable side panel 2 positions.

Includes:

• Rear hatch.
• Ground sloping.
• Dropside panel removal.
• Working platform with safety rail and hydraulic and mechanical equipment necessary for operation.
• Front opening with sliding lock system by the throat and stainless steel bar to lock the head in front.

The rotation

• This machine mounted double roll 4 teams polyurethane platform anchored to the floor, subject pivot, bearing and hydraulic activity guides adapted.
• Hydraulic motor to guide the drum of 6.7 kW, with tank 70 l stainless steel solenoid valve, joints, pipes, detection limit, wiring, hoses and piping.
• Gateway sash.
• Electric control cabinet.
• Alarm notification prior to rotation of the box.
• Contact Detector and captive element according Safety Standard of the European Union.
