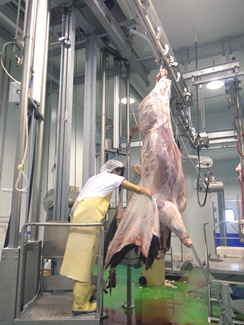

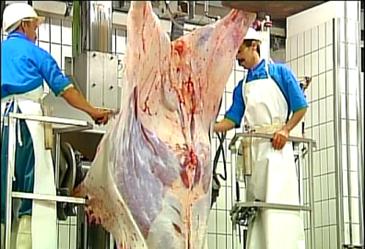

M 102315 SKINNING PNEUMATIC PLATFORM
Description:
Machine designed to facilitate skinning operations carried out by operators at different points in height.
It consists of a mobile platform, which moves up or down, depending on the needs of the operator. This platform has appropriate security measures and are handrails, stairs to climb it, and so on.
Are prepared to give them any auxiliary machinery, whether tools, sinks, sterilizers or showers.
The entire operation is done by pneumatic valves, thus avoiding the placement of electrical components.
Technical Data:
- Made of stainless steel AISI 304
- Working pressure: 6 bar
- Platform Dimensions: 800x800

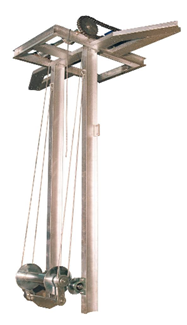

M 102300 SKINNER V30
Description:
Machine designed to help skinning tasks in beef cattle. Skinning occurs up and down the canal to avoid getting dirty.
Technical Data:
- Chassis: Galvanized steel construction.
- Power: 3 Kw.
- Working pressure: 6 bars.
- Maximum production: 25 cattle per hour.
M 102301 SKINNER V 70
Description:
Machine designed to help skinning tasks in beef cattle.
Skinning up and down.
Available with electrical stimulation.
Hidráullica machine operation.
Set vertically movable and mobile telescopic hydraulic cylinder.
Technical Data:
- Connection system for skinning.
- Hydraulic pump action. 780 CC engine. P = 400bar.
- Electric motor: 30 Kw., 220-380-415 V, 50-60 Hz
- Roller: Stroke Length: 2800 mm.
- Overall height: 5685 mm.
- Stainless steel electrical stimulator.
- Control (Joy-stick) drive drum and cylinder.
- Electric panel with transformer.
- Capacity: 70 V / H.
