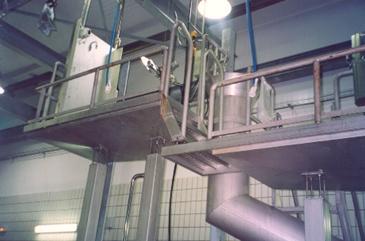

PLATFORM IN TWO HEIGHTS

Description

Two-storey platform designed for the preparation of the hind legs and transfer of cattle. The working height of the first platform is 1600 mm, and the second of 2000 mm. Both platforms have a regulation of ± 250 mm.

The platforms compliant health and safety at work. These platforms have service stairs to access them, guard rails and skirting board and slip floor.

Sink installed and can carry knives disinfector

Technical Data

• Dimensions: 3500X1000
• Working heights: 1600 mm (platform development), 2000 mm Platform (transfer)

Note: Not included in the offer

• Handwashing and disinfection of knives.

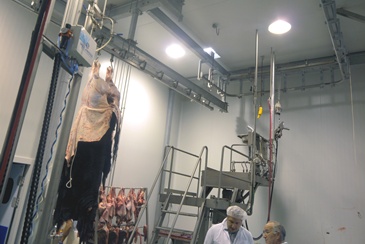

FIXED PLATFORM DOUBLE TRANSFER

Description:

Height workstation designed to work cular, bleeding, dressing, splitting and weighing.

It consists of a fixed platform made of stainless steel, which carries a ladder one side for access.

The platform is designed to accommodate a sink and sterilizer for knives and necessary tool for carrying out the operation.

The dimensions of the platforms may vary depending on the client, as can be:

• Individual
• Doubles
• Group

The floor of the Platforms Can Be Made:

• Non-slip floor: In this case, the platform leaves Mecanova Completely finished, Because the soil Consists of a stainless steel skid plate.
• Resin Mortar: In this case, the platform is ready to work eleven installed, the client is responsible for Completing the concrete and leave the Same soil That Takes the rest of the slaughterhouse.

Note: The platform has not included the following elements:

• Sink
• Sterilizer
• Tool required for operation
• Floor in the case of mortar and resin

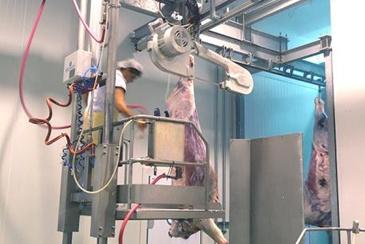

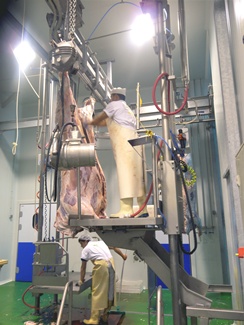

AIR PLATFORM

Description

Machine designed to facilitate the operations carried out by operators, as these have to be at different heights.

It consists of a mobile platform, which moves up or down, depending on the needs of the operator by a pneumatic cylinder. This cylinder is powered by pedals located on the ground, so that the operator has provided free hands to perform the corresponding work operations.

This platform has appropriate security measures and are handrails, stairs to climb it, and so on.

Are prepared to give them any auxiliary machinery, whether tools, sinks, sterilizers or showers.

The entire operation is done by pneumatic valves, thus avoiding the placement of electrical components, thus facilitating the maintenance tasks.

Technical Data

• Frame: Stainless steel construction
• Working pressure: 6 bar
• Platform Dimensions: By design

WHITE OFFAL PLATFORM

Description:

Tape designed for shipping of Intestines for the inspection process.

It consists of a wide 600 tape made of stainless steel AISI 304. The band is using natural polyethylene S800 pushers separated the same distance on the conveyor pushers dressing.

The tape is synchronized with said conveyor so that the inspection by the veterinarian is made simple.

Traction is performed by a drum motor, which provides significant energy savings, increased performance and improved hygiene.

Technical Data:

• Construction: Stainless steel.
• Transmission: Pulley.
• Power: Consult Engineering (depends on length).
• Band Type: Modular S800.
• Approximate Width: 600 mm.
