CLEANING
In the dressing area is cleaned and sanitized the animal
In this area we offer the following equipment:
- Elevator dressing.
- Whipping cleaning and drying.
- Oven seared and sanitation.

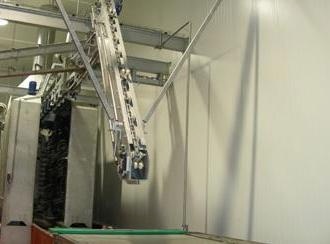

LIFT OF DRESSING
The lift of dressing. With this team Mecanova facilitates the lifting operation in slaughterhouse with slings or hooks
Description:
Machine designed to raise the pig to carry blood to the vertical bleeding. Double rail route.
The lift has installed a push-button start-stop for the same operator is the one who put it up depending on production needs
Technical Data:
- Chassis: Made of carbon steel with hot dip galvanized treatment superfical.
- 0.75 kW gear motor.
- Chain installed: MC-56 step 100.
- Crowns: tractor and forwarding
- Approximate length: 4.5 m
- Available via tubular, double rail or deck.

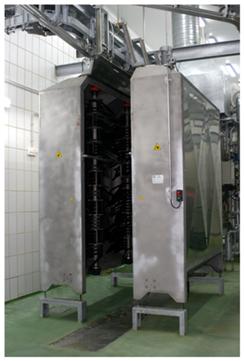

BRUSHING
Description:
Machine designed for removing remaining dirt, hair, water etc. .. the animal.
There are two types:
- Cleaning (includes spray of cold water.
- Drying.
It is particularly suitable for:
- Cleaning before scalding tunnel.
- Drying oven before scorching.
- Clean oven after scorching.
Technical details:
- CONSTRUCTION: Stainless steel AISI 304, also available in galvanized steel.
- ENGINE: 3-kW gear motor.
- No. WHIPS AXLE: 168 Units.
- WEIGHT: 500 Kg Approx.
- SHAFTS AVAILABLE: Vertical, horizontal and inclined.
The machines they have Mecanova depends on number of axes and position, so we have:
Models:
2RV SCOURGE: 2 vertical shafts
3RV SCOURGE: 3-axis vertical
4RV SCOURGE: 4-axis vertical
4RH SCOURGE: 4-axis horizontal.
| POSITION / PERFORMANCE C/H | 100 | 200 | 300 | 400 | 600 |
| After whipping scalding | 2RV | 3RV | 3RV | 3RV | 4RV |
| Dried whipping | 3RV | 3RV | 3RV | 4RV | 4RV |
| Whipping final cleaning | 3RV | 4RV | 4RV+4RH | 4RV+4RH | 4RV+4RH |

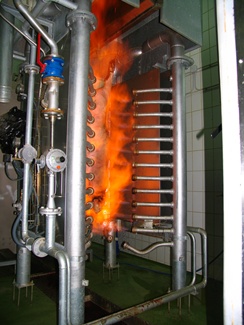

OVEN SEARED
Description:
Fully automatic oven singed, serves to remove the remaining hair after the hair removal process and flogged.
Outfit 4 columns of burners. It automatically be adjustable time and intensity
Technical Data:
- The construction is galvanized steel, except the outer plates are of stainless steel AISI - 304.
- Production from 320 to 650 c / h per unit.
- Fuel: Propane or natural gas.
- Consumer 0.12m3 / h GN.
- Number of openings: 56.
- Time of fire. 2-15 seconds adjustable.
- Power: constant pilot.
- Power: 1,150 Kcal / hr.
- Diameter of smoke outlet: 600 mm.
- Valve singeing step.
- Approved by the Directorate General of Naval iron and steel industry, with No. AIG/314/85, according to IMO 03/07/1974, D. 1651/74.
Maximum yields:
- 650 pigs per hour per unit.
