The purpose of blanching is to soften the skin to facilitate later removal of hair
Mecanova scalding offers different systems depending on the needs and production line.
- Immersion
- Spray
- Steam
Immersion Scalding
SCALDED RAFT
Description:
Scalding Balsa manual stainless steel
Specifications:
Cuba length is 2000 x 2000 mm.
The Cuba is equipped with the following elements:
- Water inlet: Controlled by a pneumatic valve, which is operated by the system level.
- Steam System: The heating of water vapor with a temperature control valve gradually, which is triggered by a PT100 temperature probe.
- Drain.
Yield:
It is designed for outputs of up to 50 hours animals.

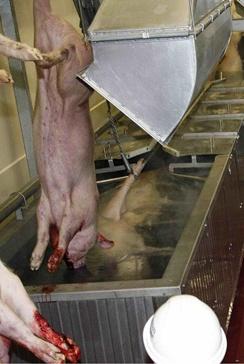

PULL THROUGH SCALDING
Description:
Rectangular raft scalding scalding conveyor incorporates a pig that automatically introduces and drags the animal out of scalding.
The raft can take different forms depending on the configuration of the line.
It is protected by stainless steel insulated panels.
Specifications:
The length of Cuba in terms of production line
The Cuba is equipped with the following elements:
- Made of stainless steel and coated with insulating panels in stainless steel.
- Water inlet: Controlled by a pneumatic valve, which is operated by the system level.
- Steam System: The heating of water vapor with a temperature control valve gradually, which is triggered by a PT100 temperature probe.
- Drain.
- Drag conveyor.
Yield:
Machine particularly suitable for production of pigs from 25 to 110 hours.
For more productions escaldadeo recommend a system of vertical.

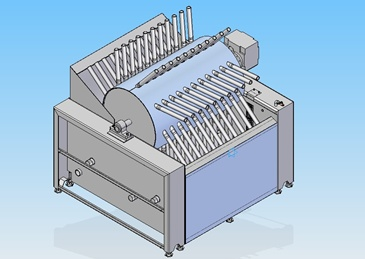

DRUM SCALDING
Description:
It consists of a set of Cuba and a rotating drum
Specifications:
The Cuba is equipped with the following elements:
- Made of stainless steel and coated with insulating panels in stainless steel.
- Water inlet: Controlled by a pneumatic valve, which is operated by the system level.
- Steam System: The heating of water vapor with a temperature control valve gradually, which is triggered by a PT100 temperature probe.
- Drain.
- Bombo swivel.
Yield:
Machine particularly suitable for production of 25 to 80 pigs hour.
For more productions escaldadeo recommend a system of vertical.

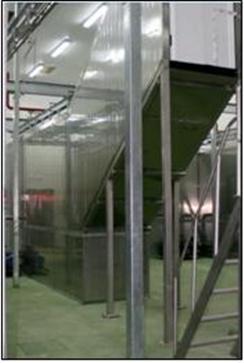

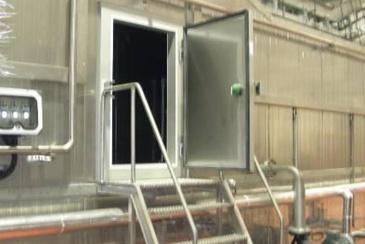

VERTICAL STEAM ESCALDES
Description:
Vertical tunnel system scalding hot showers
The machine consists of a stainless steel AISI Cuba -304, closed with insulated panels also stainless steel.
The animal runs into the scalding hanging chain conveyor receiving the spray of hot water.
Specifications:
The tunnel is equipped with the following elements:
- Construction: Stainless steel AISI - 304, covering sides and top. Hinged doors and out.
- Water pumping system for a shower. Power: 3 Kw. per pump installed.
- Number of pumps: according to design.
- Water input with level control.
- Water heating system from steam.
- Drain cleaning drain valves quickly.
- The length of scalding depends on the performance of the line.
- The height of scalding depends on the size of animals designed to your specifications.
- Temperature control precision to tenths of a degree.
- Operational Control Panel individually or integrated into the online panel via PLC.
- Incorporates access doors and maintenance
Maximum yields:
The scalding is indicated for production from 80 hours and up to 1,000 pigs
