Description

• Driving the stunned animal to the point of no stress.
• Ensure a rapid induction of unconsciousness without causing pain.
• Maximize the quality of the final product.
• Ensure safety.

Mecanova offers different systems of stunning:

• CO2 system.
• Box of immobilization.
• Restrainer stunned manual.
• Automatic stunned restrainer.

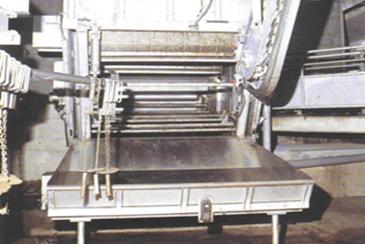

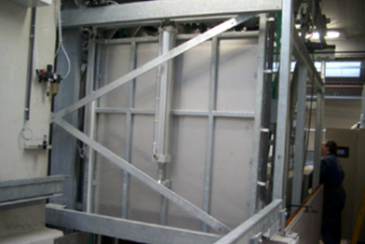

CO2 STUNNING SYSTEM

Description:

Machine designed for gas anesthetized pigs by gas CO2.El estimated consumption is 300 grams per animal.

Advantages:

The advantages we bring to this team are:

• Best bleeding.
• Lower rate of broken legs.
• Lower rate of broken ridges.

Technical Specifications:

• Automatic control system of CO2 level.
• Security door maintenance.
• Emergency evacuation pump.
• Charging system side or rear.
• Entry system: manual or automatic.
• Automatic cash adjustment.

Maximum yields:

• Depending on the design of the machine

Mecanova models that are available:



OPERATION	INCOME / ANIMALS CAJILLÓN
Nº CANGILONES	PRODUCTION
1	80/4
2	160/4
6	240/3
7	320/3
8	400/3
10	600/3
12	700/3

ELECTRIC STUNNING SYSTEM

The pig stunned by electric shock is the most traditional and it is advisable horizontal bleeding animal.

STUNNING PIG BOX

Description:

Machine designed to facilitate the work of stunning of pig carcasses.



Specifications:

• Chassis: Made of stainless steel AISI 304.
• Working pressure: 6 bars.

ELECTRONIC STUNNING TE002

Operation:

• Stunning cause narcosis.

Team Technical Data:

• Transmission: Electric.
• Dimensions: 380x230x570mm.
• Weight: 45kg.

RESTRAINER

Operation:

• The restrainer is a machine whose function is to drag the animal by two V-shaped straps to the stunning area.

Technical Data

• Construction: A42-b steel galvanized or stainless steel AISI 316.
• Dimensions:
  • Height - 2000 mm.
  • Length - 3500 mm.
  • Width - 1450 mm.
• Weight: 650 kg.
• Air consumption: 0.5 m3 / h.
• Installed power: 4.4 Kw.
• Operating voltage: 380 V (50 Hz).

Models:

R100

The machine is designed for manual stunned serving only the driving function of the animal.
The productions are available between 50 and 400 pigs / hour.
Animals from 80 to 150 kg live.

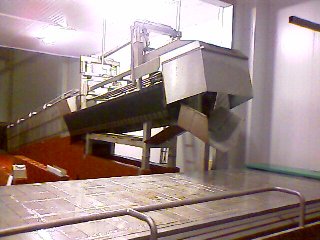

R400

Machine equipped with an automatic system for stunning

• The production is getting between 50 and 400 pigs /hour.
• Animals from 80 to 150 kg live.
• The daze is done automatically with electrodes can regulate all parameters such as intensity and time of discharge depending on the weight and conductivity of the animal.
• The standard restrainer is designed to treat pigs with live weight from 80 to 150 kilograms.

RAJ 400

Automatic adjustable restrainer.
Based on the R400 incorporates an adjustable for the passage of pigs with live weight up to 300 a kg.

The height of the hall is adjusted with 4 pneumatic cylinders

BLEEDING

Mecanova bleeding offers different systems suitable for machine stunned.
These systems ensure a rapid bleeding, profuse and complete. Can be vertically or horizontally.

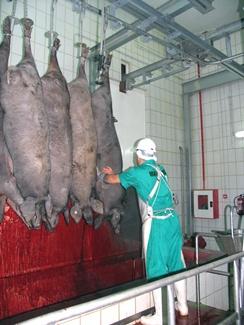

Vertical bleeding

The system consists of:

• Lifting bleeding.
• Route of accumulation for stabbed.
• Introducing a carrier or by bleeding.
• Carry blood.
• Blood collection hopper.
• Storage of blood and blood cooker.
• Platform stabbed.
• System vampire blood collection.

Especially suitable for stunned by CO2

Horizontal bleed

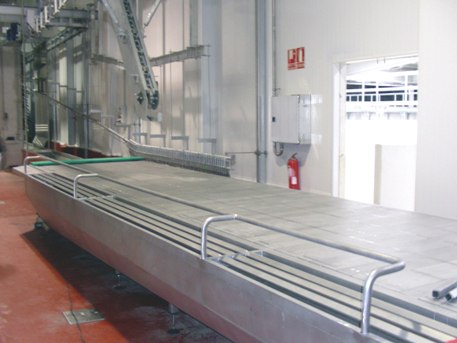

BLEEDING TABLE

Description:

Mesa dynamic collection of pigs on the edge of stunning, bleeding for horizontal and hang back and hoisted to the way of dressing.

Technical Data

• Power: 3kw.
• Construction: stainless steel.
• Polyethylene bands. Totally optional steel.
• Blood collection system with pump connection.
• Automatic cleaning system continuously.
• Size: Depending on the required output on the line.
