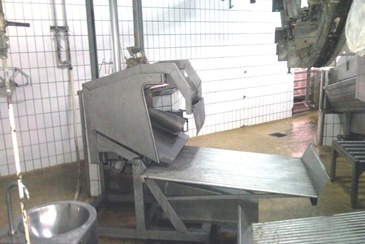

RITUAL BOX FOR SHEEPS AND LAMB

Description:

Machine designed for the slaughter of sheep for ritual Halal or Kosher.

The animal's head is trapped so that the neck of the animal is exposed to the operator so that it can perform the sacrifice with ease. After the operation, the operator opens a door operated by a pneumatic cylinder, and the animal is picked up on a table for later lifting.

Technical Data:

• Construction: Stainless Steel
• Transmission: gearmotor
• Power: Engineering Consult
• Air pressure: 6 bar

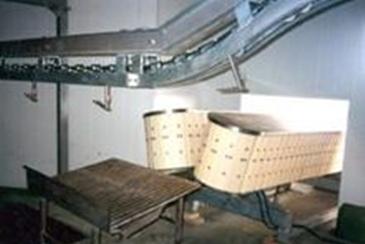

SHEEP RESTRAINER

Description:

The restrainer is a machine whose function is to drag the animal by two V-shaped straps to the stunning area.

Technical Data:

• Construction: A42-b steel galvanized or stainless steel AISI 316
• Dimensions:
  • height - 2000 m
  • Length - 3500 mm
  • Width - 1450 mm
• Weight: 650 kg
• Air consumption: 0.5 m3 / h
• Installed power: 4.4 Kw
• Operating voltage: 380 V (50 Hz)
• Modelos:
  • RO 100
  • RO R 500

TE002 ELECTRIC STUNNING

Operation:

• Cause stunning narcosis..

Team Technical Data:

• Transmission: Electric.
• Dimensions: 380x230x570mm.
• Weight: 45kg.
